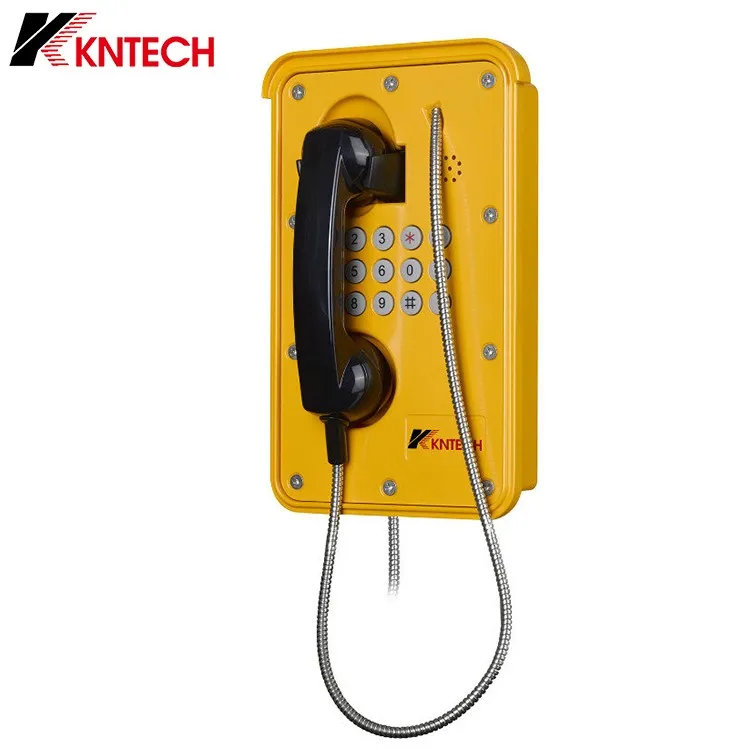

KNTECH Emergency Systems Telephone KNSP-09 Rugged Analog Phone

FOB Reference Price:Get Latest Price
US $199-226 / Sets | 1 Set/Sets Emergency Systems Telephone KNSP-09 Rugged Analog Phone (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
KNTECH
Model Number:
KNSP-09
Type:
Emergency telephone, Outdoor Emergency Telephone
Voice Mail:
Yes
Product name:
KNTECH Emergency Systems Telephone KNSP-09 Rugged Analog Phone
Color:
Yellow
Size:
320*205*120mm
Function:
Auto-dial,Conversation time counting, etc
Application:
Highway, Tunnel, Metrol and so on
Material:
Aluminum alloy
Protection grade:
IP66
IP/analog:
optional
Certificate:
CE, RoHS, ISO9001: 2008, SGS, TUV
Supply Ability
Supply Ability:
1000 Set/Sets per Day Emergency Systems Telephone KNSP-09 Rugged Analog Phone
Packaging & Delivery
Packaging Details
KNTECH Emergency Systems Telephone KNSP-09 Rugged Analog Phone packing details
Packaging specifications
Machine size:320 *205 *120( mm )
Carton size:439 *277 *191( mm )
Packaging material: pearl cotton, carton
Gross weight:9KG
Net weight:7.2KG
Port
Shenzhen/HongKong
Lead Time :
Shipped in 7-25 days after payment

KNTECH Emergency Systems Telephone KNSP-09 Rugged Analog Phone



Product Description



Emergency System Telephone KNSP-09 Rugged Telephone applications:

As Public telephone for indoor or outdoor, Taxi or bus stands or station, Highway call box

Railway, metro, ATM machines side,  Tunnel, Port, Dock, Mines, Generation facilities...

A good ideal telephone for use in wet or corrosive atmospheres



Emergency System Telephone KNSP-09 Rugged Telephone main features:

1.  Robust aluminium alloy die-cast body,   Vandal resistant and tamper-resistant hardware, simple installation.

2. Super strong function is available for dialing 12 groups of numbers stored in the memory (maximum length of each number is16 digits)

3.  Weather resistant to IP66 standard, service temperature range from: -35 degree to +75 degree

4.  Magnetic reed hook-switch

5.  Telephone line powered. No external power or battery back up required.

6.  Lightening protection to ITU-T recommendation K.21

7.  Handset: made of special engineering plastic, high anti-knock resistance, Weatherproof, armoured cable optional,

8.  Hearing Aid compatible receiver, Noise canceling microphone.

9.  Handset integrity wiring to enable the telephone system to check if the telephone unit is still operational.

10. Selectable 7 minute time out, to release the line if the handset is left off hook.

11. Ingress Protection: GB4208-93   IP66   EMC: EN55022/EN55024/EN50121-3-2: 2006   FCC



VOIC OVER IP- SIP (Optional)
Connection type: RJ45 Socket inside sealed enclosure
Power supply: External 24V dc
Call set-up Protocol: Session Initiation Protocol(SIP)
Configuration: DHCP or STATIC IP address provisioning






Emergency System Telephone KNSP-09 Rugged Analog Phone main technical parameters:

Working environment temperature
-35 degree to 75 degree
Atmospheric pressure
86- 106  Kpa
Circumstance noise
≤60dB(A)
Sound level of ringing
≥70dB(A)
MTBF
5-70000 hours
Standard frequency:
low frequency group: 697. 770. 852. 941Hz,
high frequency group: 1209, 1336, 1477Hz
Call transmission index
(5KM) SLR ≤12,RLR≤-1, STMR≥10, output impedance is  600ohm



Emergency System Telephone KNSP-09 Rugged Analog Phone Products Show:



SP-09

 SP-09 (2)

KNSP-09 KS (2)

airport telephone call control center KNZD-16 metro Kntech

SP-09lightjpg







Packaging & Shipping

 KNTECH Emergency Systems Telephone KNSP-09 Rugged Analog Phone packing specification:

Machine size:320 *205 *120( mm )
Carton size:439 *277 *191( mm )
Packaging material: pearl cotton, carton
Gross weight:5.7KG
Net weight:3.9KG
Packing  (3)

Related Products

 KNTECH Analog Heavy Duty Industrial Telephone Mining Telephone with LCD

weatherproof telephone





Company Information



HONGKONG KOON TECHNOLOGY LIMITED is dedicated to engaging in R&D, manufacturing and sales of various types of exclusive emergency communication system.


Products include IPPBX PAGA system, industrial SOS IP telephone,help call station,intercom,as well as large network management command systems such as TR069,SNMP Modbus TCP protocol SIP applied in metro, tunnel, airports, petrochemicals, metallurgy, nuclear power, marine,ship building, bridge,mine,and special industry.
The factory has a large area of 8,500 square meters. The corporation strives for building up KNTECH to be a top international brand. We are the only Asian enterprise passing IEC, IECEX and EN50121 authentications in the industry. Our various products received the authentications from German TUV, European CE, Us FCC, ETL,PART68 as well as I SO900 .
We have built up good cooperation with varied international renowned corporations for several years, includingSIEMENS, ABB, THALES, HUAWEI, AVAYA,NEC and ALCATEL.

Company principle: for first quality and best service.
Our team: with the camel's spirits of targeted, disciplined, perseverance, endurance.
Our staff: honesty, sincerity, carefulness, meticulosity and toughness.
Our vision: setting up a world brand and establishing a hundred-year store.

Kntech new brochure system (2)

Kntech new brochure system (4)

-1

KNTECH exhibition german hambur smm, west isc



1

Certifications
1 certificate

 alibaba











FAQ



 Question 1. What version of the phone do you have?

--Answer: All of our models are support five versions: analogue(PSTN), VoIP, GSM, PAGA, Wifi. Can be powered by AC110-240V, DC12V / DC5V, telephones line powered, solar, POE, battery or UPS.



Question 2. What's the advantages of your products compared with others?

--Answer:

a. Most of our products have got the International Standard certification. Such as IECEx, IP65, IP66, FCC, CCC, ISO9000, EMC, ROHS, SGS, ...etc.

b. We have enough stocks support flexible and fast lead time within 3-7 days.

c. We support the best price lower than others with good quality and 24X7 hours online service. If you could share the project name and the photos of after-installation, we will offer 5-10% discount to support you.



Question 3. How long is the warranty period?

--Answer: Normally the warranty period is 18 months after items received. If there any issues on the phones, we can send parts for your replacement.



Question 4. Will you offer any spare parts in free?

--Answer: Yes, we can offer 2% spare parts(not included the phone housing).



Question 5. Can you provide a neutral version?

--Answer: Yes. we can support neutral version. Normally, the default is our standard Kntech brand and the price is favorable than the neutral version.



Question 6. If some parts of the phones occur issue need to be changed, can we find the parts in our local store?

--Answer: Yes, if out of the warranty period, please let us know the issue and we will offer the technical data of the parts and reference price.



Question 7. Can I purchase the accessories separately like PCB board, handset, buttons, speaker, keypad, ...etc?

--Answer: Yes, we support MOQ 1pcs.



Question 8. Can I do customized of the products?

--Answer: Yes, we support OEM \ ODM order. We have our own R&D Department with high technology support. Please provide your detailed requirements.



Question 9. Can I choose other colors of the phones?

--Answer: Yes, normally the default color is yellow. Some model like KNZD-04, KNZD-11, KNZD-13, KNZD-14... support red, blue or white. It is base on our stock. If the quantity over 100pcs, we can support other colors you like.



Question 10. What's the MTBF of the phone?

--Answer: The MTBF is 50,000-70,000 hours. And the average failure rate is very low at 0.3%.
