Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: KNTECH
  • Model Number: intercom system
  • Type: Multi-Party Paging System
  • Product name: intercom paging system

Packaging & Delivery

Packaging Details 2017 KNTECH Server Multi-Party Emergency wifi PABX intercom paging system
Delivery Time Shipped in 5 days after payment
Product Description





2017 KNTECH Server Multi-Party Emergency call system , PBX intercom  system



KNTECH Wifi Intercom Systems BASIS SIP intercom and broadcast system is a new generation of voice broadcasting system, which is based on internationally accepted standards IP and SIP communication protocol and developed on the basis of Kntech matured carrier-grade VOIP product. This system has following advantages: First, it solves problems such as distance restriction, susceptible to interference,large investment in equipment and higher maintenance costs in conventional analog broadcast system transmission; Second, it also solves problems such as nonstandard broadcast protocol, weak intelligence, poor service application,difficult to connect with telephone network etc in traditional IP digital broadcast intercom system. Third, it really realize integration of computer network,digital video surveillance and interior communication. Simply connect system terminal to LAN or international internet, without re-wiring, and you can quickly build IP emergency and public broadcasting system.





The Most Striking Features It is cost-effective with short construction period, easy expansion, and low maintenance costs. Meanwhile, the system can also add interfaces of system software&hardware based on customer’s requirements, linking with fire alarms, access control systems and video surveillance systems. Application It can be widely used in subway, highways, power plants, gas stations, mines, schools, hospitals, banks, prisons, urban,key monitoring targets and military administrative zones and many other industries and places.

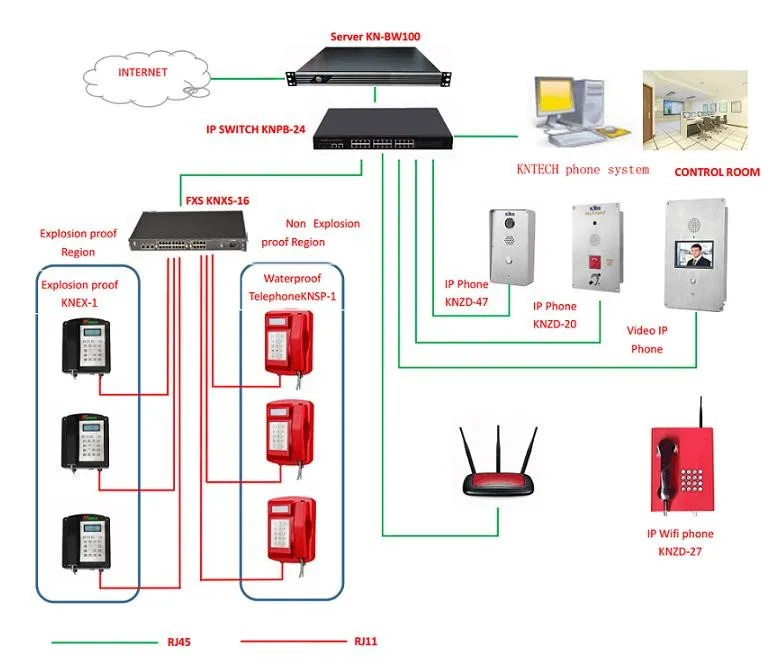

System Composition

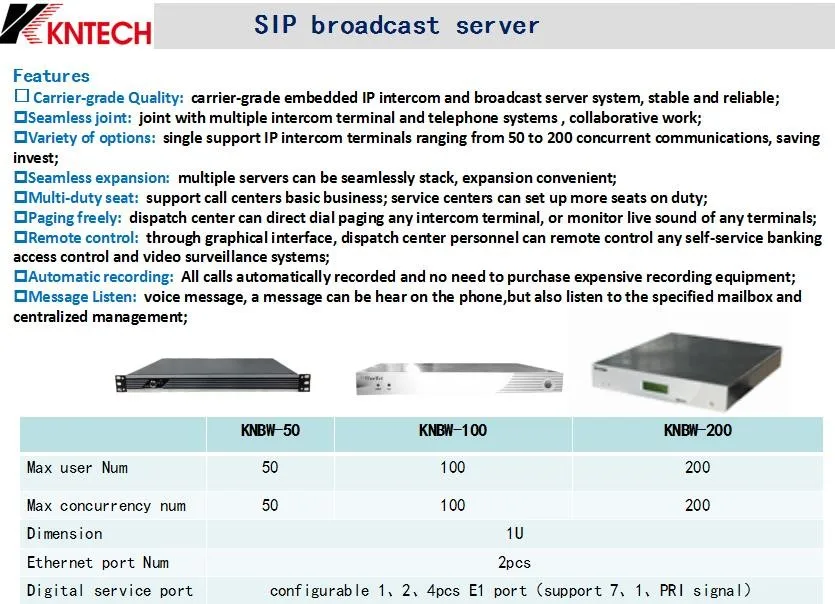

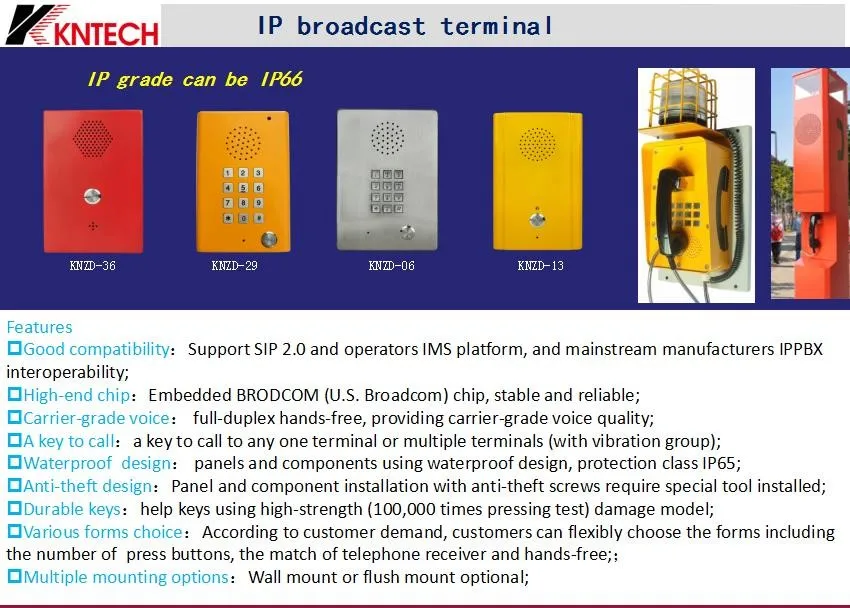

Koontech SIP intercom and broadcast system,consist of SIP broadcast intercom terminal,SIP broadcast server,IP broadcast control software,center operation console and VOIP phone. SIP broadcast intercom terminal: provide one emergency button intercom,emergency broadcast communication... SIP broadcast server: provide connection service to intercom terminal and responsible for automatic calling distributive management;integrate with traditional telephone system and administration office phone system by voice frame relay. IP broadcast control software: centralized manage network terminal status,intercom,monitor,broadcast,surveillance and access control. Centre operation console: with high fidelity voice,a key broadcast and real time monitoring status of broadcast terminal equipment.







High quality services: Transmission using all-digital way, could stay insulated from transmission distance, but also from the environment, users can enjoy carrier-grade voice services; Multi-system interoperability: Customer emergency calls, customer service phone calls and administrative office calls are seamlessly connected; Service scalability: Support for conference calls, call forwarding, voice mail, three-way calling and other functions; Full time recording: System equipment comes with call recording function, eliminating the need for expensive call recording equipment; monitoring linkage: The system equipment has preset linkage interface with access control, alarm, video surveillance and other systems; Easy to adjustment and maintenance: Provide software automatic updates,support for TR-069 and provide remote web maintenance;

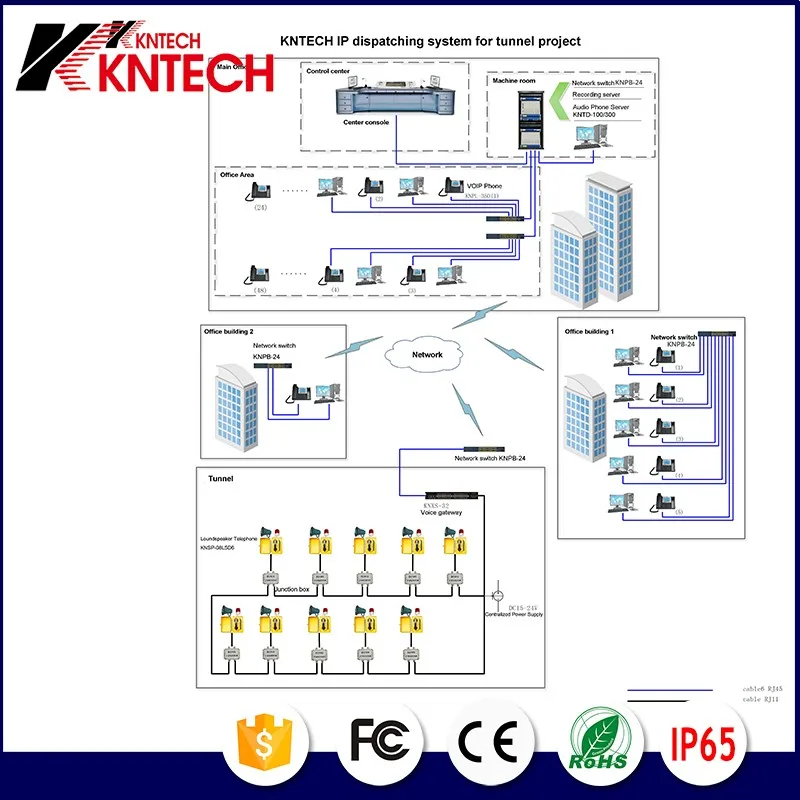

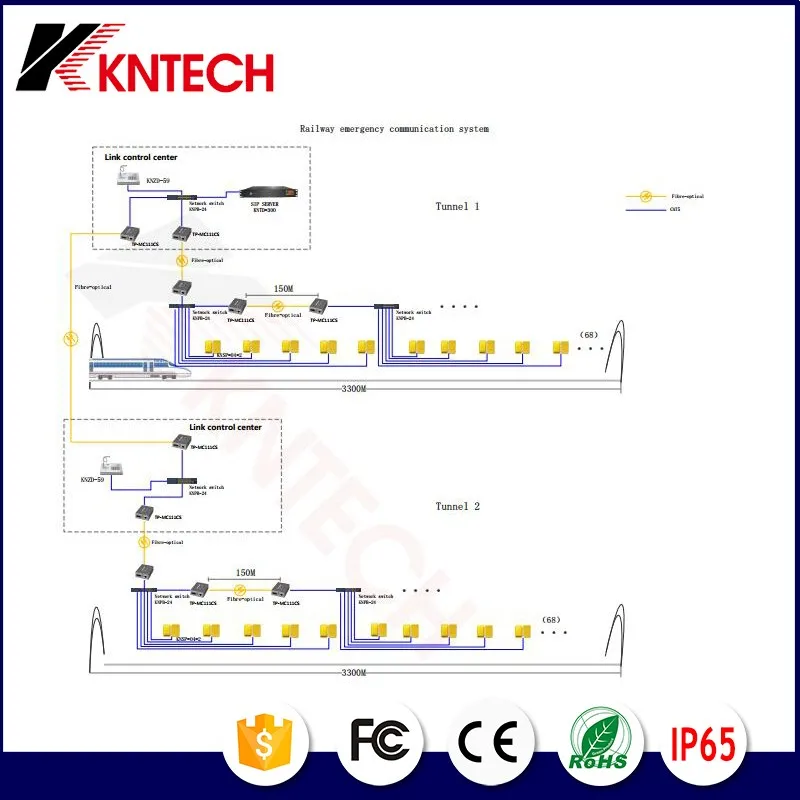

SIP intercom and broadcast system application



Factory(steel plant,power plant,cement plant etc)

Edifice(elevator application)

School Bank Station(station hall,metro,highway,tunnel,dock)

Hospital Scenic spots(country park,reservoir)

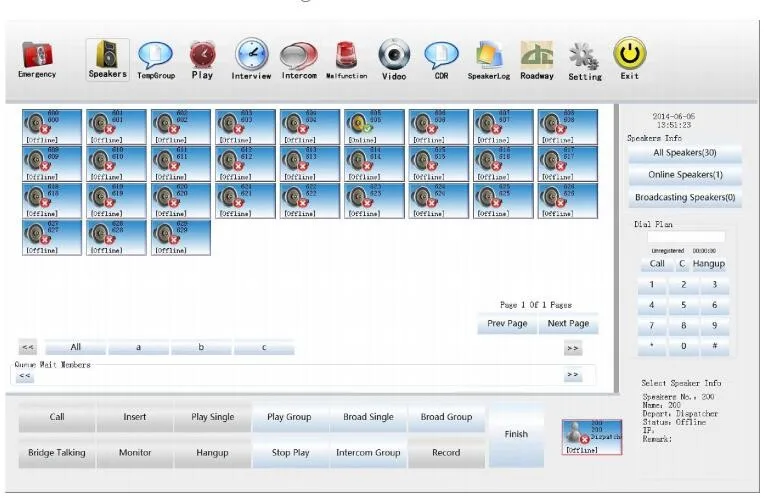

IP broadcast control software

Features: Core control hub: IP broadcast control software is the core control hub of IP intercom and broadcast system; Terminal status monitoring: monitor all terminal online or offline state through computer big screen; Select monitor and intercom: Select a network terminal and click to initiate monitoring and communicating to a certain terminal; Broadcast control: realize unicast, multicast , play all, monitor , the default broadcast and other broadcasting operation; Terminal information calibration: network terminal can configure detailed information , such as geographic location , network properties , call for help icon will change color display; Broadcast grouping maintenance: group management can handle multiple network terminals grouped as 1 group simultaneously as per requirement; Text -to-Speech Broadcast: select one or a group of network terminal, you can input text to voice compound live broadcast or speech; Remote Control: select a network terminal ,click to implement remote control of this terminal monitor and access control system; Incoming call alert: The system receives help , the corresponding terminal icon will change color , including caller details ( including caller ID , caller name, panel serial number etc.); Call auxiliary functions: after system answering help , call forwarding can be initiated and telephone hold and other services; Recording function: intercom, monitoring , broadcasting real-time recording , support for manual recording start and stop;

















  Multi-Party Paging System
