Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: KNTECH
  • Model Number: KNSP-16
  • Type: industrial telephone
  • Voice Mail: No
  • product name: xplosion proof phone Security Analog phone with best LED screen
  • Material: aluminum alloy dia-casting
  • size: 320*205*110mm
  • Certificate: CE, RoHS, ISO9001: 2008, SGS, TUV
  • color: red,yellow ,blue or customised
  • Analogue VoIP: Optional
  • Keypad: NO
  • Weatherproof Degree: IP67
  • Vandal Resistant: Yes
  • Warranty: 18 Months

Packaging & Delivery

Packaging Details Emergency SoS Telephone KNSP-16 explosion proof phone Security Analog phone with best LED screen
Machine size: 320 *205 *120( mm )
Carton size: 439 *277 *191( mm )
Packaging material: pearl cotton, carton
Gross weight: 5.5KG
Net weight: 5.0KG
Delivery Detail: Shipped in 7 days after payment
Delivery Time Shipped in 5 days after payment
Product Description

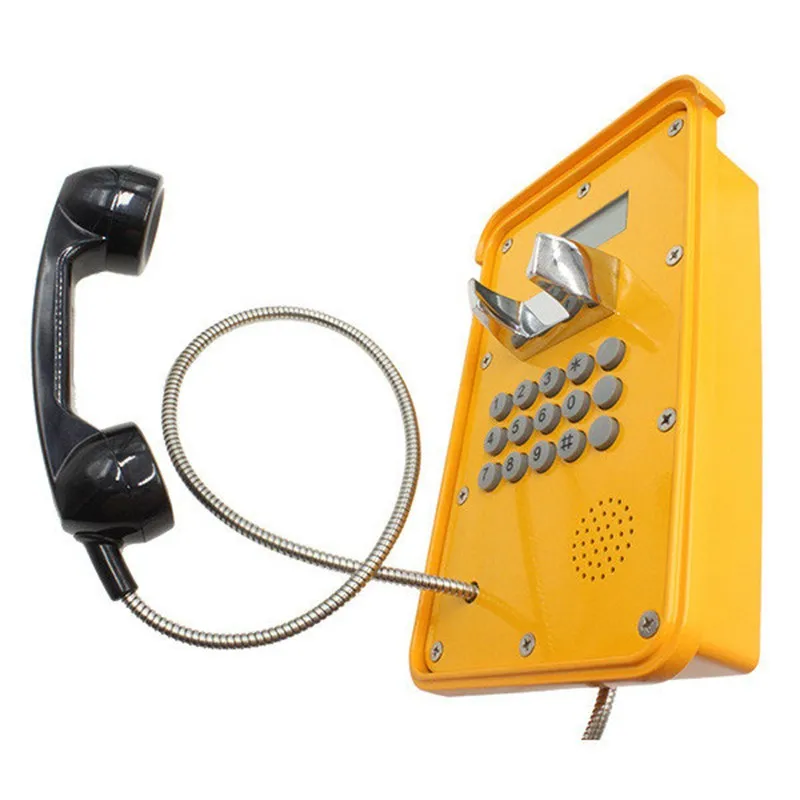

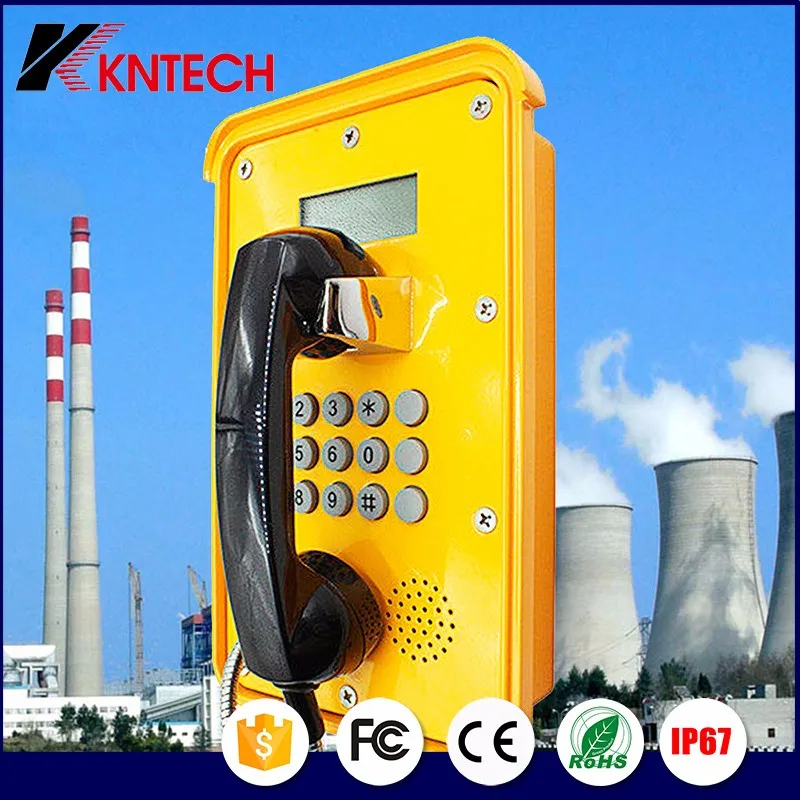

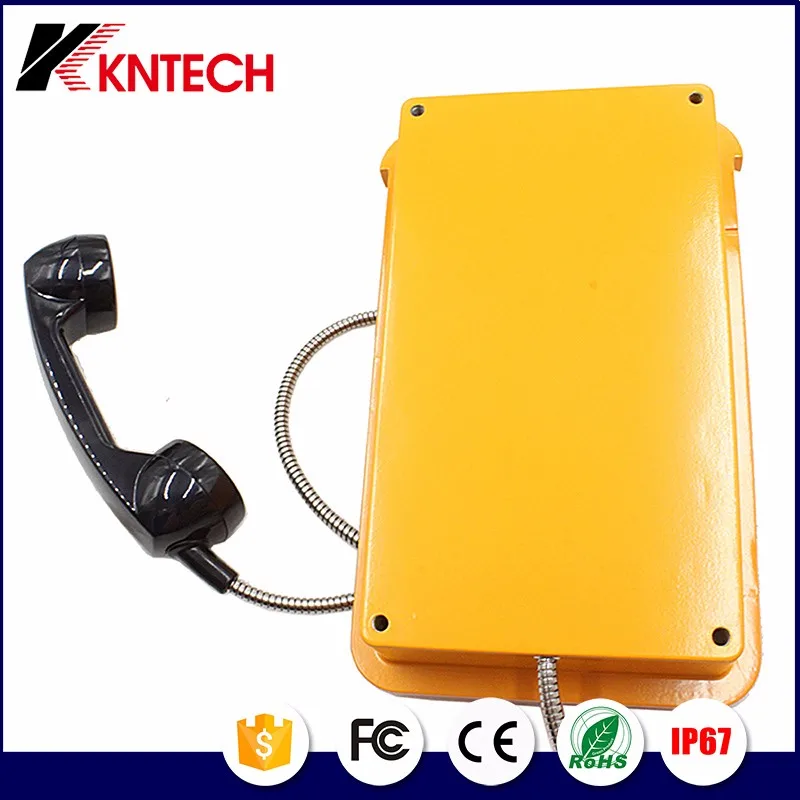

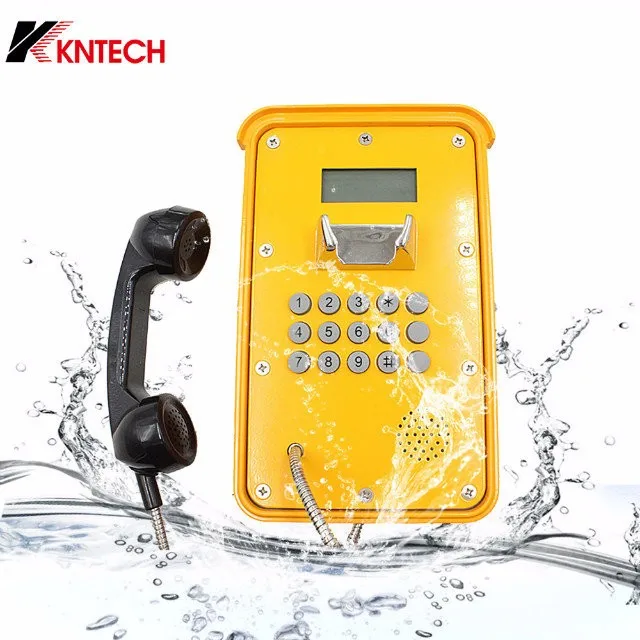

Emergency SoS Telephone KNSP-16 explosion proof phone Security Analog phone with best LED screen

The Weatherproof phone will be designed to work on Railway, metro, tunnel, etc. Housed in robust aluminium die case with spring loaded door, it will offer protection against the outdoor environment, vandals resistance and rot resistance.

The unit will meet all the latest European/UK standards for EMC and US FCC, telephony, waterproofing IP67, and lightening protection together with offering the level of performance and reliability demanded in such an environment.

Standard Analogue and VoIP-SIP options available

DTMF(Dual Tone Multi Frequency)

Matching with most PABX,PBX and PAX systems or IP PABX.

Phone line powered, or AC powered for VOIP or POE

1. Product general description

1.1 Main Product features1. Robust aluminium alloy die-cast body,

2. Full keypad with memory, 10 button programmable speed-dial telephone, Illuminated button optional.3. Keypad with shining painting for self illumination in dark area.

4. Weather resistant to IP66 standard, service temperature range from:-10℃ to +75℃

5. Magnetic reed hook-switch

6. PoE-Power over Ethernet, No external power or battery back up required.

7. Lightening protection to ITU-T recommendation K.218. Handset: made of special engineering plastic, high anti-knock resistance, Weatherproof, armoured cable

9. Hearing Aid compatible receiver, Noise canceling microphone.

12. Vandal resistant and tamper-resistant hardware,

13. Easy installation/ replacement

14. Last number redial

15. Adjustable ringer and volume control inside

Voice Features
Support 2 lines SIP, SIP 2.0 (RFC3261)
Codec:G.711A/u,G.7231 high/low,G.729, G.722,G.726
Echo cancellation: Support G.168 and hand-free can support 96ms
Support VAD,CNG
NAT transverse: support STUN
Supports full duplex.
SIP support SIP domain,SIP authentication(none,basic, MD5),DNS name of server, peer to peer
SIP support 2 servers, user can through each server to calling in and out
DTMF:SIP info,DTMF Relay,RFC2833
SIP application: contain SIP call forward/transfer/holding/waiting/3 way conference/Paging and intercom/ click to dial/pickup/ joincall/redial/unredial.
Call control features: Flexible dial map, support hotline, empty calling no. reject server, black list for reject, authenticated call, no disturb, caller ID and so on.
Could dial use private server automatically when public server unregistered while private server is resgistered successfully
Support phonebook 500 records, incoming calls / outgoing calls / missing calls. Each supports 100 records
Support MWI
support conference call in server
Phonebook supports VCard standard
Support 12/24 time format.
Support daylight saving time
Support path, gruu
Support SIP Privacy.

5.1.3. Network Features
WAN/LAN: support Bridge mode.
Support PPPoE for xDSL
support VLAN
Support Stun penetration
Support DHCP get IP on WAN port
Qos supports Diffserv.
support network tools: contain ping,trace route,telnet client

5.1.4. Maintenance and Management
The phone supports post mode, can update firmware by post mode.
Supports different levels of administration.
Support Boot Monitor
Can upgrade firmware through boot monitor
access with different authority
support auto provisioning
Can config through Web, Keypad, Telnet
Can upgrade firmware and configuration file through HTTP, FTP, TFTP
Support syslog



Autodial telephone, handset emergency telephone, handfree emergency telephone, handset free emergency telephone, Auto dial emergency phone, Metal emergncy telephone, sos telephone, help telephone, GSM telephone, help point, help phone, outdoor emergency telephone, Gaitronics, emergency call point, metal help telephone, camera phone, public telephone, loud speaking phone, bank service telephone, elevator phone, window intercome, LCD telephone, hotline phone, talk a phone, cleanroom telephone, weatherproof phone, SIP phone, voip phone, call point outdoor weatherproof phone, solar energy help phone, tunnel telephone, 2G, 3G telephone, trackside telephone, Vandal Resistant Telephone, sip phone, tunnel phone, metro phone, highway phone, sos phones, sip phones, weather proof telephones, emergency telephones, industrial telephones, VoIP phones, bank telephones, sip telephones,intercom.

Certifications
Why Choose Us
Contact us

Helen Gong

T: + 86 755-2744 8753-8015

F: + 86 755-2979 0278

skype: knsales09

Mobile/Whatsapp/wechat/Line: +86 138 2651 4109

Any questions about heavy duty phone ship surveillance SOS Telephone  , please feel free to let me know anytime !

Quick response, 24 hours customer service !
