Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: KNTECH
  • Model Number: KNSP-01
  • Type: Industrial Outdoor Weatherproof and Explosionproof Telephone
  • Voice Mail: No
  • Product name: KNTECH Industrial Outdoor Weatherproof and Explosionproof Telephone
  • Material: Aluminum alloy die - casting
  • Analogue VoIP: Optional
  • Keypad: Yes
  • Warranty: 18 Months
  • Weatherproof Degree: IP66
  • Certificate: CE, RoHS, ISO9001: 2008, SGS, TUV
  • Application: Hazardous area
  • Size: 320*205*120mm
  • Color: Yellow or customised

Packaging & Delivery

Packaging Details Industrial Outdoor Weatherproof and Explosionproof Telephone Specification
QTY:1PCS
Machine size:320 *205*120( mm )
Carton size:439 *277 *191( mm )
Packaging material: pearl cotton, carton
Gross weight:7.1KG
Net weight:5.3KG
Delivery Time Shipped in 5 days after payment
Product Description

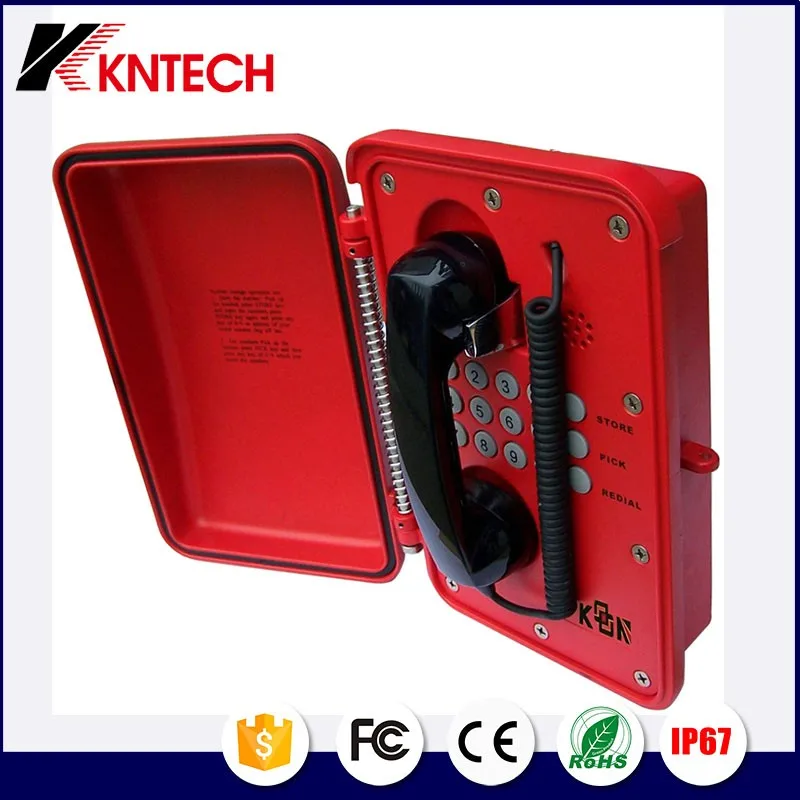

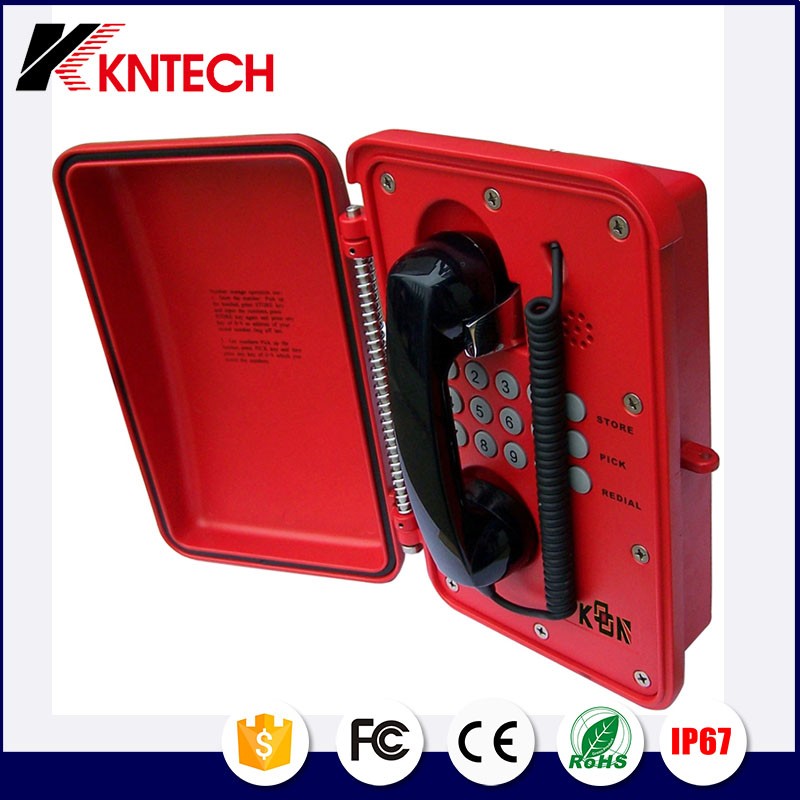

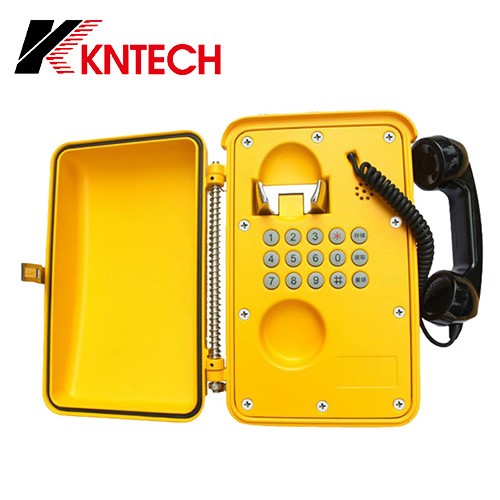

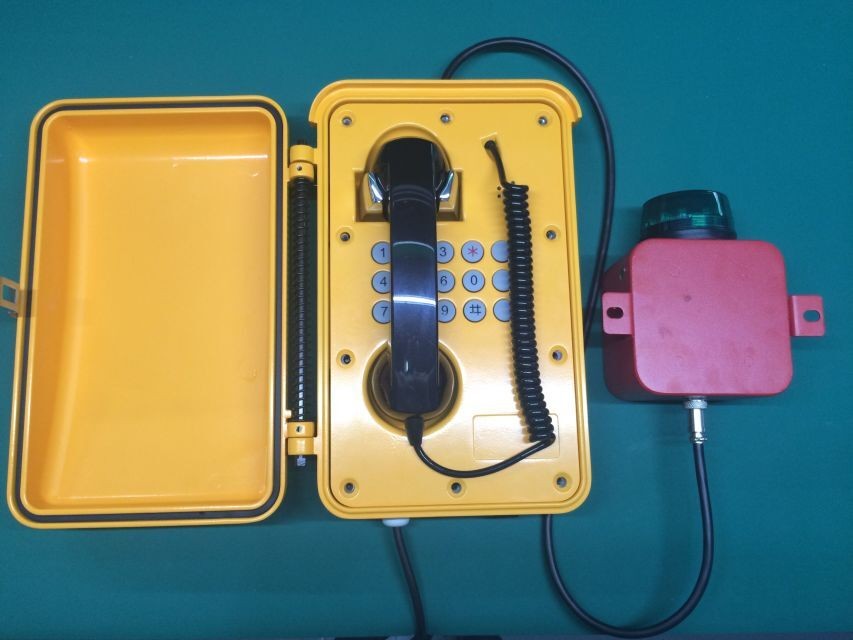

KNTECH Good Stability Industrial Outdoor Weatherproof and Explosionproof Telephone
Model No.: KNSP-01

Applications:

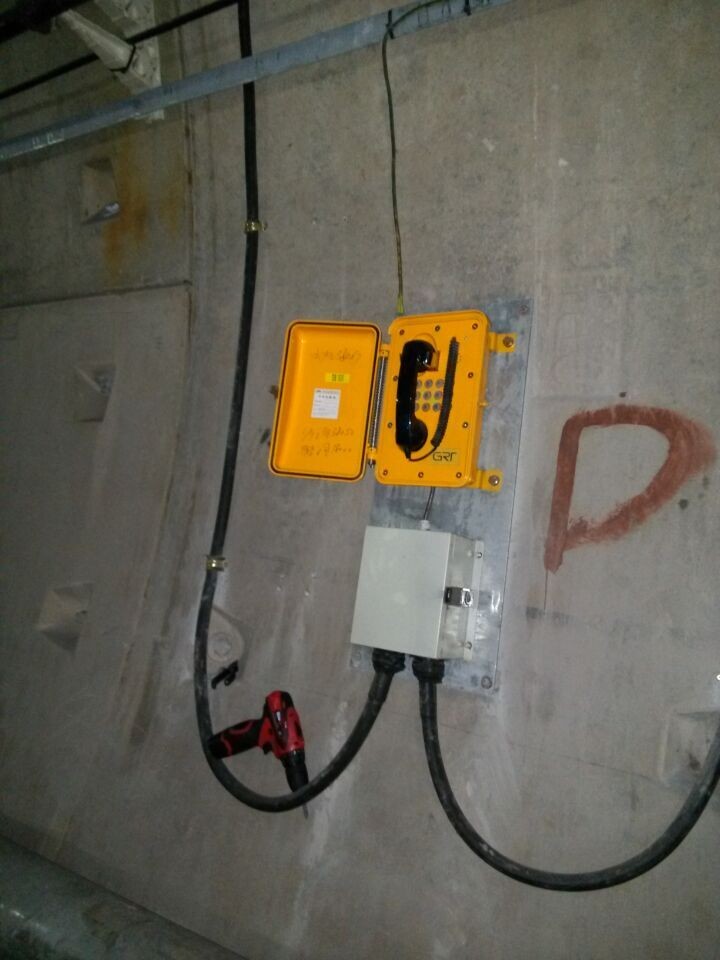

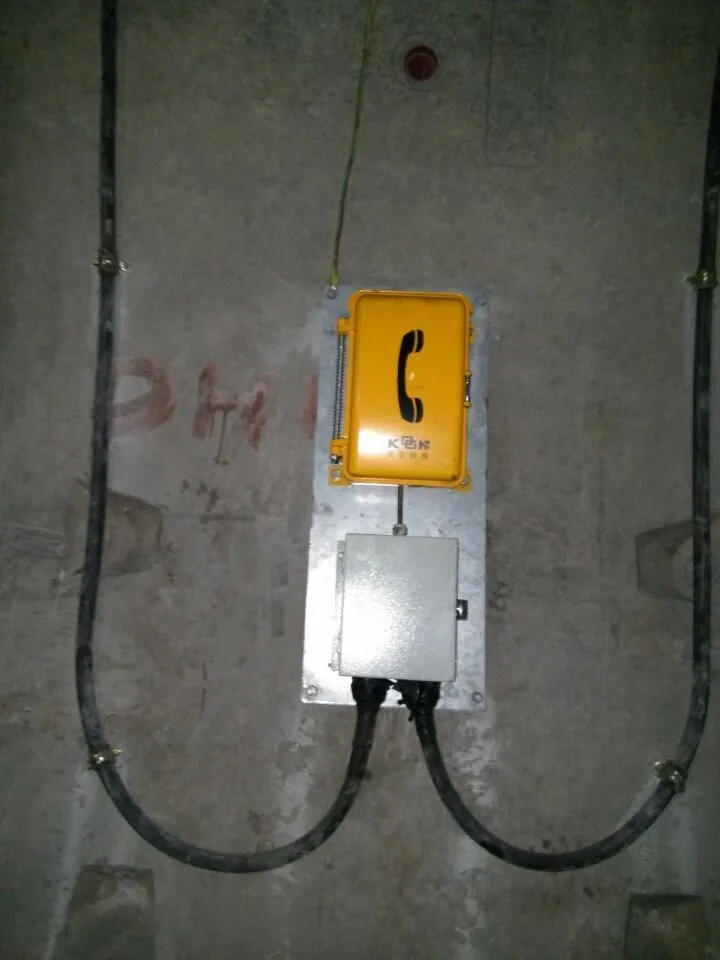

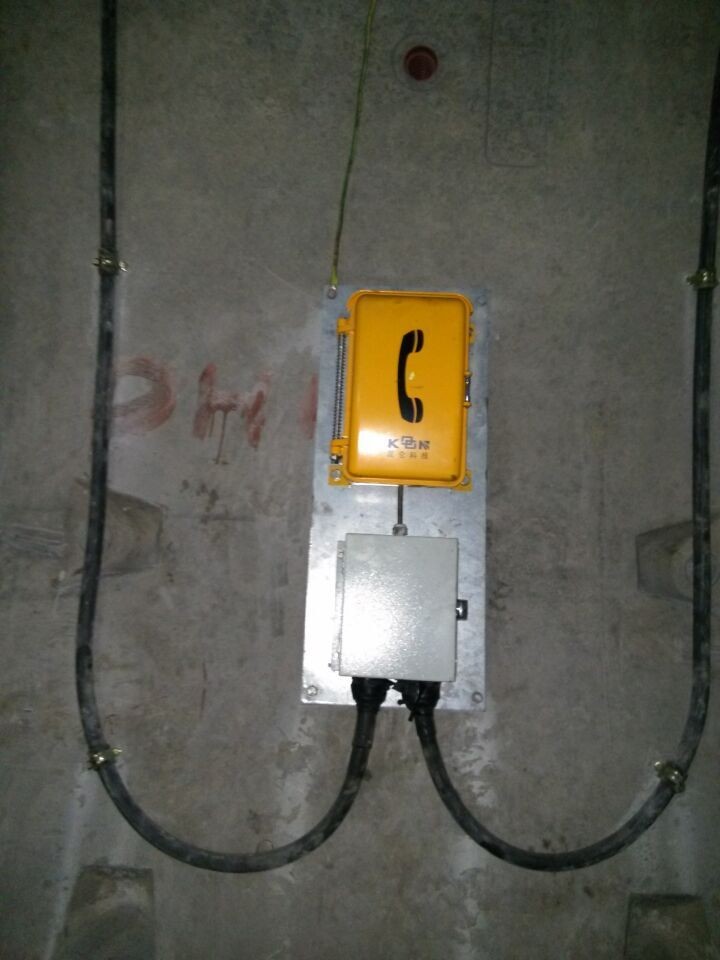

The weatherproof phone will be designed to work on railway, metro, tunnel, etc.
Housed in robust aluminum die cast with spring loaded door, it will offer protection against the outdoor environment, vandals resistance and rot resistance.
The unit will meet all the lasted European/UK standards for EMC and US FCC, telephone waterproof standard IP66, and lightening protection together with offering the level of performance and reliability demanded in such environment.

Main features :
1. Cabinet:aluminum alloy die - casting, high anti-violent, able to glisten, convenient for looking for
2. Door cover:orient automatically and good self - closing, convenient for use.
3. Handset:made of special engineering plastic, high anti-knock resistance. high tensile strength resistance and high anti-violent.
4. All of the components including handset telephone receiver and transmitter, keypad, buzzer, circuit board and cabinet are designed to be multi - layer waterproof and dust - proof which is up to Class III grade. The whole machine is up to national standard GB4208-93 IP 66.
5. Phone is provided with high stability, high anti-jamming capability, and it is up to national standard GB/T 15279-94.
6. Telephone line powered for analogue version , DC or POE powered for SIP-VoIP version .
7.VOIC OVER IP- SIP (Optional)

KNTECH Good Stability Industrial Outdoor Weatherproof and Explosionproof Telephone Specification
Ambient temperature
-30 degree to 60 degree
Atmospheric pressure
86- 106  Kpa
Circumstance noise
≤60dB(A)
Sound level of ringing
≥70dB(A)
MTBF
5-70000 hours
Standard frequency:
low frequency group: 697. 770. 852. 941Hz,high frequency group: 1209, 1336, 1477Hz, frequency deviation: -1.5%~+1.5%
Call transmission index
(5KM) SLR ≤12,RLR≤-1, STMR≥10, output impedance is  600ohm
Call capability of phone
GB/T 15279-94
Defend grade
GB 4208-93 IP 66 / IP 67
Why Choose Us
HongKong Koon Technology Ltd is the most professional manufacturer in Asia, The exclusive supplier for all Metro project in China.
We are the leading professional manufacture of most complete production line of IP66/IP67 emergency telephone, SOS phone, Weatherproof telephone, elevator telephone, tunnel trackside telephone, highway emergency phone.They are IP or PSTN/analogue telephone and wireless GSM 2G 3G. phone line powered, solar powered, or AC powered.
More than 100 models, different colors, different type of mounting, CE, FCC, IP66, ITU-T, ISO9001, EN50121 approvaled. ATEX DNV certificate under process.

Emergency telephone Application:
indoor: Airprot, transtation, bank,koisk, elevator, university, hotel, hospital, plant, oil and gas.
outdoor: tunnel, highway, marine, outdoor station, construction, bridge, steel, mine, army, scenic region,
Successful project in recent:HK MTRC contract XRL851, LRT Project in Malaysia, Bangalore Metro, HONGKONG KAIDA tunnel, HK MTR,Italian Metro,BKK Red Line Thaliand, IKITELLI metro project, Mumbai metro in Indea, NSR project in Saudi,BHP Billiton australia, CSN Brazil, Chalco China, story bridge Austrialia,HSBC bank, China bank, ICBC, HK airport, Frankfurt France, BeiJin airport, Beijin University, HK university, etc.

Our emergency telephone SOS telephone are widely accepted in countries in North America such as USA, Canada, in European countries such as UK, Germany, France, Netherlands, Greece, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain etc. and Russia.


Certifications
 KNTECH Good Stability Industrial Outdoor Weatherproof and Explosionproof Telephone Certificates
Packing details
KNTECH Good Stability Industrial Outdoor Weatherproof and Explosionproof Telephone Packing
Machine size
320 *205*120( mm )
Carton size
439 *277 *191( mm )
Gross weight
7.1KG
Net weight
5.3KG
Delivery date
within 3-5 days after receive payment
